Accessories for Heat Treatment Machines

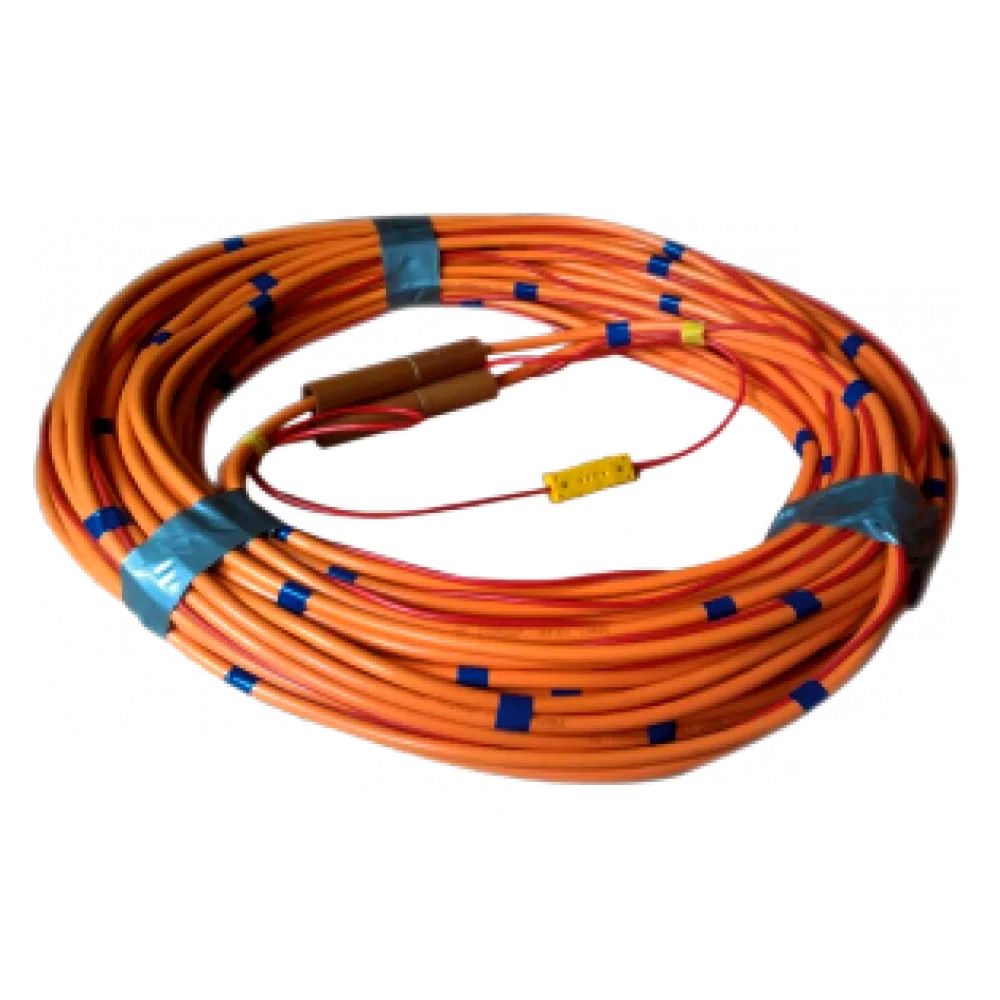

Triple Set Cables
The triple cable set consists of two lengths of heat and oil resistant and flame retardant (HOFR), double insulated copper cable complete with two 300 amp female camlock connectors on one end and two 300 amp male camlock connectors on the other end. Running alongside the copper cable is a length of compensating cable which has a thermocouple plug on one end and a thermocouple socket on the opposite end.
• Length: 10, 20, 50 and 100 Foot
• Colour: Black, Orange, Red (available)

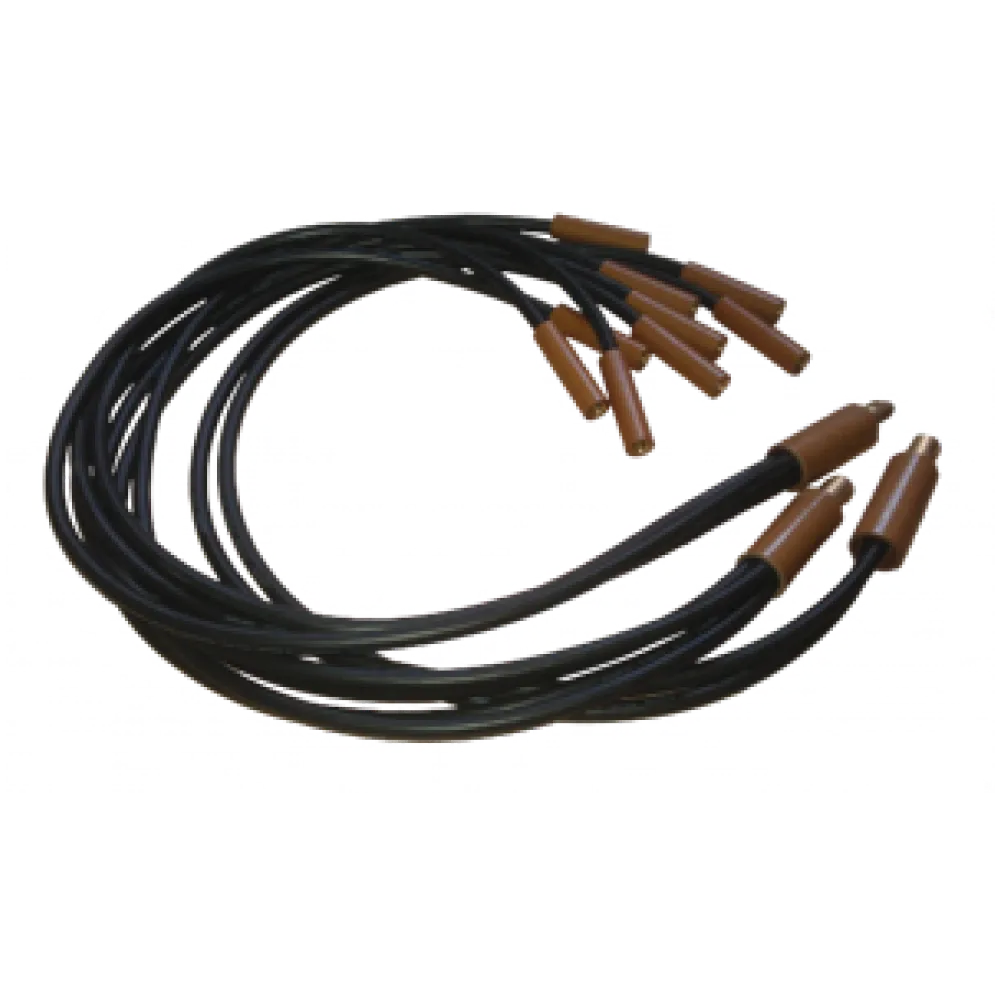

Splitter Set Cables
The splitters cables set consists of two, three, four or five lengths of heat and oil resistant and flame retardant (HOFR), double insulated copper cable complete with female camlock connectors and male camlock connectors on the other end.
60A female camlock connector
300A male camlock connector
• Length: 4 Foot
• Colour: Black, Orange, Red (available)
•2 way, 3 way, 4 way and 5 way splitter cable set

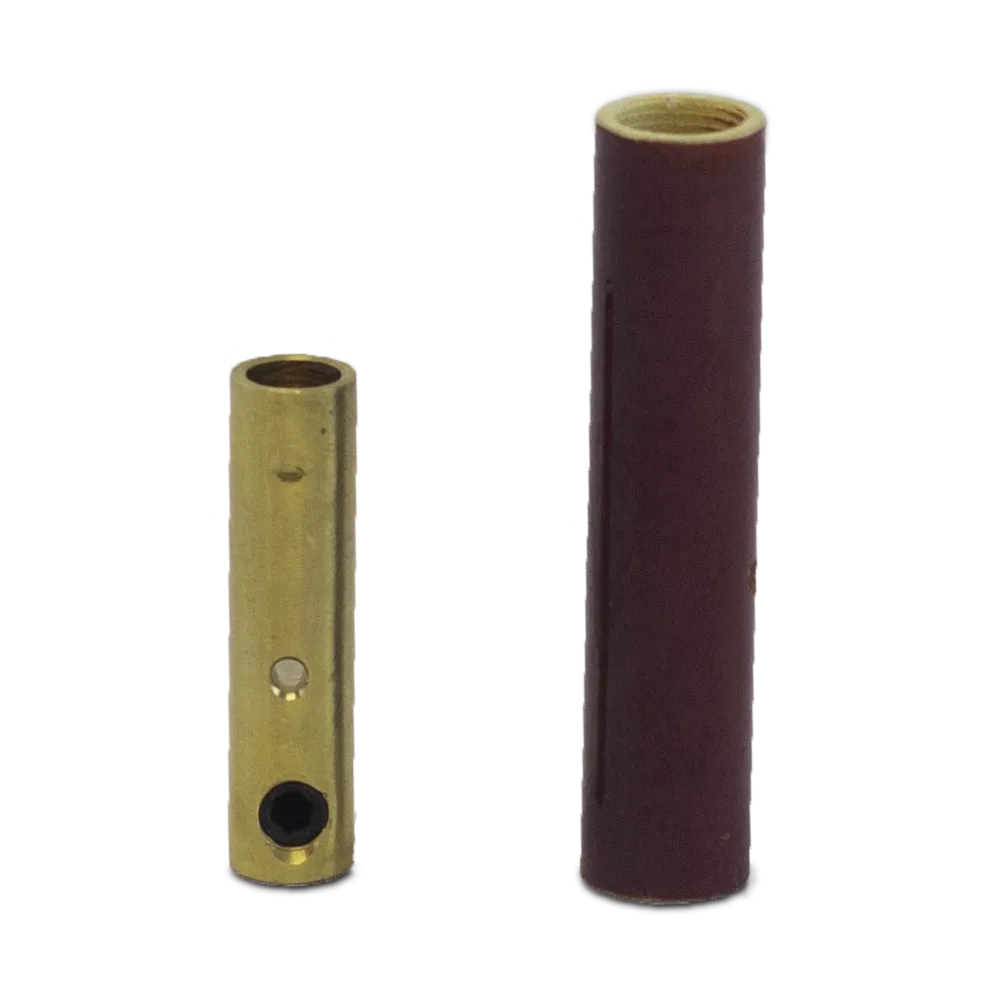

300A Twistlock Brass Connector Socket
(Female Camlock) Complete Set
Complete set of the 300A Twistlock Brass Female Connector, including Sleeve and Pin. Used for Triple Cables Sets.
• Dimensions Assembled: 86 H x 28 W x 28 D mm
• Total Weight: 126.6kg
• Materials: Epoxy Resin (Sleeve), Brass (Body) and ABS (Pin)
• Colour: Red Sleeve, Bass Body, White Pin

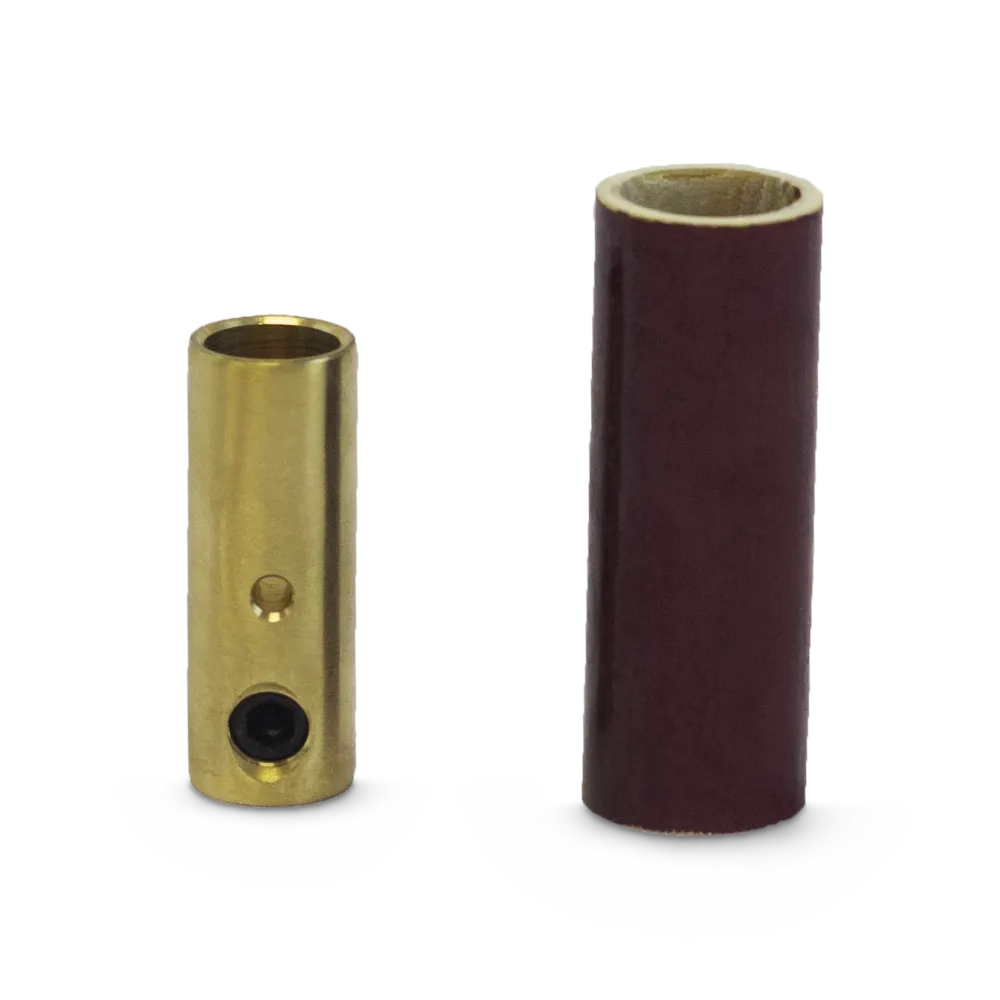

60A Twistlock Brass Connector Socket
(Female Camlock) Complete Set
Complete set of the 60A Twistlock Brass Female Connector, including Sleeve and Pin. Used for Splitters cables .
• Dimensions Assembled: 79 H x 17 W x 17 D mm
• Total Weight: 53.2g
• Materials: Epoxy Resin (Sleeve), Brass (Body) and ABS (Pin)
• Colour: Red Sleeve, Bass Body, White Pin

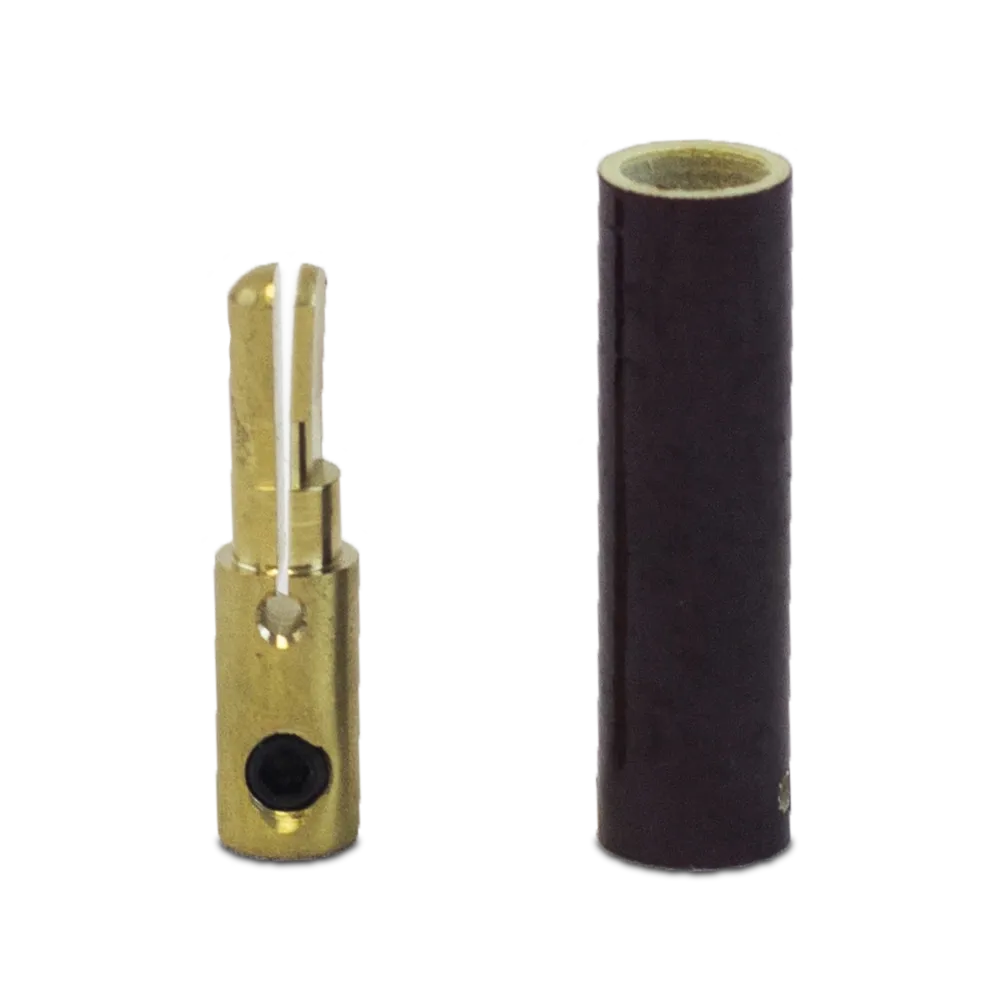

60A Twistlock Brass Connector
Plug (Male Camlock) Complete Set
Complete set of the 60A Twistlock Brass Connector, including Sleeve and Pin. Used for Flexible Ceramic Pad Heaters.
• Dimensions Assembled: 87 H x 17 W x 17 D mm
• Total Weight: 30.2g
• Materials: Epoxy Resin (Sleeve), Brass (Body) and ABS (Pin)
• Colour: Red Sleeve, Bass Body, White Pin

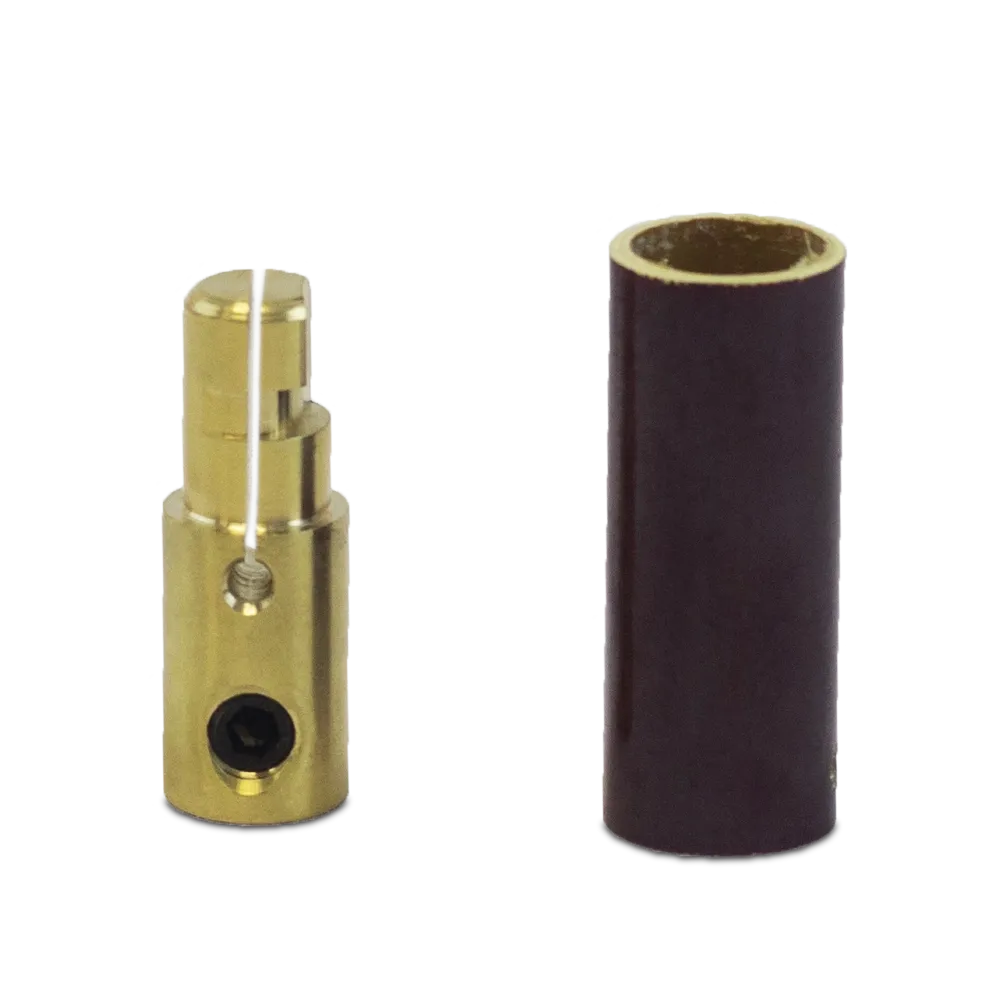

300A Twistlock Brass Connector Plug
(Male Camlock) Complete Set
Complete set of the 300A Twistlock Brass Male Connector, including Sleeve and Pin. Used for Triple and SplitterCables Sets .
• Dimensions Assembled: 99 H x 28 W x 28 D mm
• Total Weight: 148.6kg
• Materials: Epoxy Resin (Sleeve), Brass (Body) and ABS (Pin)
• Colour: Red Sleeve, Bass Body, White Pin
