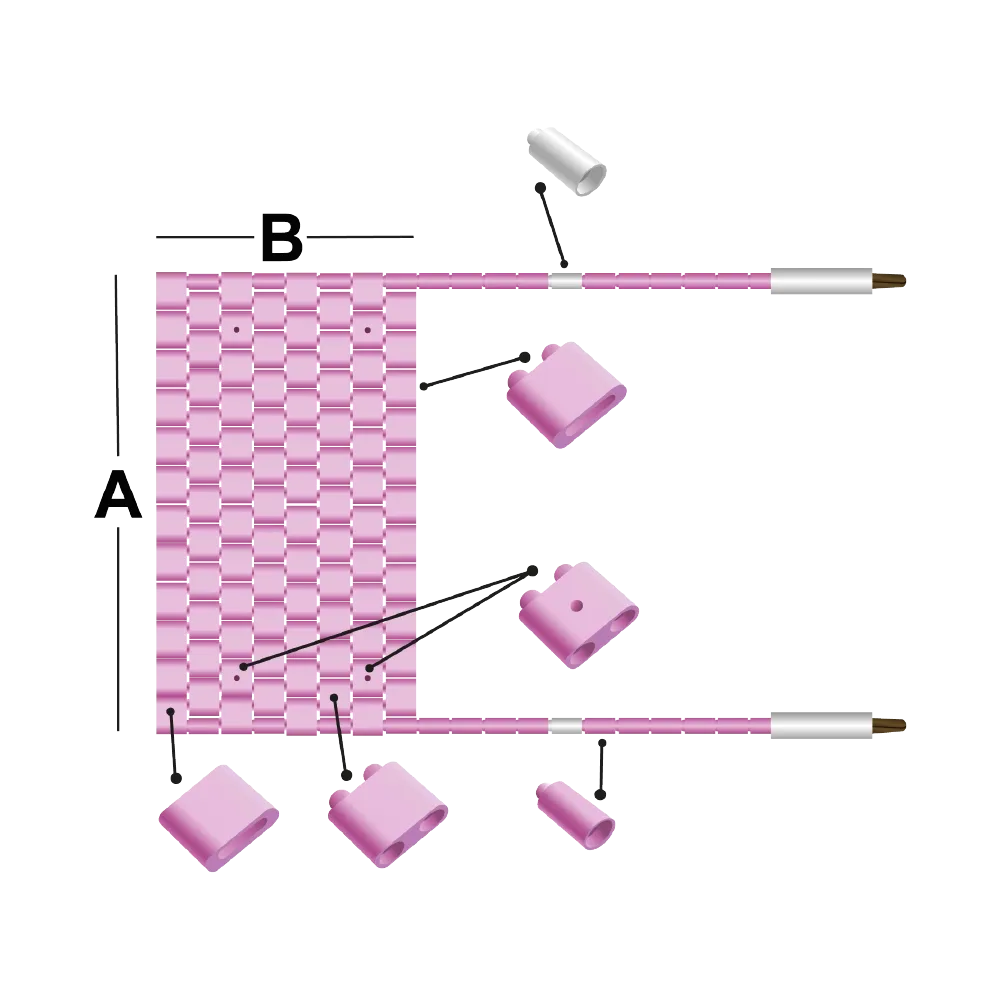

The FCP- Flexibles Ceramic Heater Pad are designed for preheating and stress relieving of pipes, pressure vessels etc. The elements consist of multistrand nickel-chrome resistance wires which run through small “two-hole” ceramic insulators. The insulators together with the resistance wires are very flexible and give a good heat radiation and effective heat transmission. The cold nickel tails and resistance wire are welded together. It is designed to provide a temperature up to 2000°F or more with changes in the electric alloy element under consult.
We also offer a wide variety of lengths and widths, and we can customized any size or voltage that you need. The standard heating element is Ni-Cr 80/20, but we can supply in other resistance alloy as Ni-Cr 60/16 e FeCrAl Alloy for high temperature application for use at temperatures up to 2550°F (1400°C).
We also offer a wide variety of lengths and widths, and we can customized any size or voltage that you need. The standard heating element is Ni-Cr 80/20, but we can supply in other resistance alloy as Ni-Cr 60/16 e FeCrAl Alloy for high temperature application for use at temperatures up to 2550°F (1400°C).
The element is identical to that used in the FCP heater, but has a high grade ceramic fibre thermal insulating mat protected by a stainless steel backing The Flexible Insulated Preheaters is designed to provide preheating up to a temperature of 250ºC.
Flexible insulated preheaters can be used either flat or laid over curved surfaces.
They are equally suitable for preheating pipework,
fabrications and vessels either longitudinally or circumferentially
The element is identical to that used in the FCP heater, but has a high grade ceramic fibre thermal insulating mat protected by a stainless steel backing The Flexible Insulated Preheaters is designed to provide preheating up to a temperature of 250ºC.
Flexible insulated preheaters can be used either flat or laid over curved surfaces.
They are equally suitable for preheating pipework,
fabrications and vessels either longitudinally or circumferentially
FCP- Flexibles Ceramic Heater Pad for preheating of pipes, pressure vessels etc. The elements are supplied with Ceramic Fibre blanket enclosed in mesh. The blanket is attached to a stainless-steel plate which protects from weld splatter. The plate is provided with hooks where magnets can be fixated, which make elements easy to attach. Banding of element is also possible. The FCP- Flexibles Ceramic Heater Pad can be used on flat surfaces as well as curved. It is designed to provide preheating up to 800°F.
We also can supply other kind of electrical resistance like tunnel, wrapround and working tension and rating power, feel free to contact us at any time with free estimates.
